產品特性：該熱重分析儀在振動性、穩定性、噪聲水平、室溫波動的耐受性等測試中的表現都非常令人滿意。可清晰檢測出樣品幾微克（的重量變化。另有高溫型（ H-型）以及大樣品量型（51-型）可滿足陶瓷、催化劑等領域的應用需要。
021-33587030021-33587020021-34631757
電話咨詢
These thermobalances give satisfying performance with respect to all criteria in vibration tolerance, stability, noise level, tolerance of room temperature fluctuations, and more. Changes in mass on the order of several micrograms (10 µg with the 51) can be clearly detected. Hot temperature H-types and the macro 51-types are available as needed for applications in ceramics, catalysts, and other fields.
該熱重分析儀在振動性、穩定性、噪聲水平、室溫波動的耐受性等測試中的表現都非常令人滿意?？汕逦鷻z測出樣品幾微克（的重量變化。另有高溫型（ H-型）以及大樣品量型（51-型）可滿足陶瓷、催化劑等領域的應用需要。

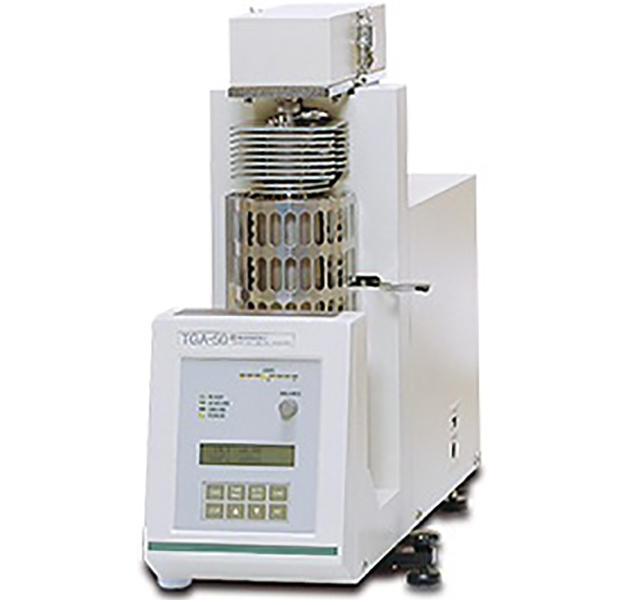

TGA-50/50H And TGA-51/51H Features
1. High Sensitivity and High Reproducibility
Uses a light-weight balance mechanism with a taut band fulcrum.
TGA-50/50H和TGA-51/51H特性：
Spacifications:
Temperature range: Room temperature to 1000°C/Room temperature to 1500°C (H-type)
Measurement range: ±20, ±200 mg (50-type)
Measurement range: ±20, ±200, ±2000 mg (51-type)
Maximum sample weight: 1 g (including wind bag)/10 g (including wind bag, 51-type)
技術參數：
-溫度范圍：室溫至1000°C /室溫至1500°C（H型）
-測量范圍：±20，±200 mg（50型）
-測量范圍：±20，±200，±2000 mg（51型）
-至大樣品重量：1克（包括風袋）/ 10克（包括風袋）
|
TGA-50 |
TGA-50H |
TGA-51 |
TGA-51H |
|
|
Temperature Range/溫度范圍 |
Ambient to |
Ambient to |
Ambient to |
Ambient to |
|
Weight measuring range/稱重范圍 |
20mg, 200mg |
20mg, 200mg, 2g |
||
|
Readability/讀數精度 |
0.001mg |
|||
|
Sample mass/至大樣品重量 |
1 g including tare |
10g including tare |
||
|
Programmable heating rate/程序加熱控溫 |
0.1°C/hour to 99.9°C/min |
0.1°C/hour to 50.0°C/min |
0.1°C/hour to 99.9°C/min |
0.1°C/hour to 50.0°C/min |
|
Hold time/保持時間 |
0 to 999min, 0 to 999hour |
|||
|
Temperature program format/程序控溫模式 |
99 steps maximum |
|||
|
Temperature program file/溫控程序文件 |
up to 100 files |
|||
|
Cooling method/冷卻方式 |
Air-cooled |
|||
|
Signal output/信號輸出 |
Analog and digital |
|||
|
Atmosphere control/氣流控制 |
Built-in gas flowmeter (250ml/min maximum) |
|||
|
Dimensions/尺寸 |
W173xD550xH500mm |
W173xD600xH540mm |
||
|
Power supply/電源 |
AC100V, 120V, 220V, 240V, 500VA, 50/60Hz |
AC100V, 120V, 220V, 240V, 1.2kVA, 50/60Hz |
AC100V, 120V, 220V, 240V, 1kVA, 50/60Hz |
AC100V, 120V, 220V, 240V, 1.5kVA, 50/60Hz |
Thermal Analysis Applications
Thermal analyzer is an indispensable for materials characterization in R&D and quality control applications in such areas as polymers, pharmaceuticals, electronic parts , foods , etc.
熱重分析應用
熱重分析儀是聚合物、制藥、電子零件、食品等領域的研發和質量控制應用中的材料表征必不可少的。
